7-Pin Trailer Socket 24N – ISO 1185 Plastic, UK Made
Overview

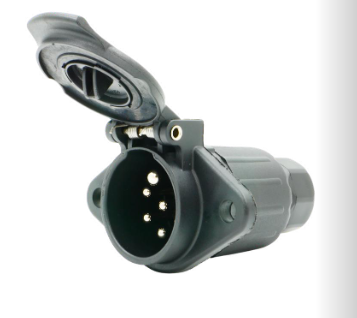

A UK-made 7-pin trailer socket in black plastic, wired to the ISO 1185 (24N) standard for 24V truck, lorry, HGV and trailer lighting circuits. Screw terminals and nickel contacts throughout, with a sprung hinged lid and a two-hole mounting flange.
Available in non-inverted and inverted versions at the same price — pick the one that matches your existing loom and mounting orientation. If you're not sure which you need, call us on 07903 297370 before ordering.
Key features
- ISO 1185 (24N) 7-pin layout for 24V lighting circuits
- UK made — not an imported copy
- Screw terminals with nickel contacts for a reliable, serviceable connection
- Plated locking pin and sprung weatherproof lid
- IP54 rated against dust and splashing water
- Single screw-thread cable outlet at 180°, taking 9.25–10.60mm cable
- Available inverted or non-inverted
Specification
| Pins | 7 |
| Voltage | 24V |
| Standard | ISO 1185 (24N) |
| Housing material | Plastic |
| Housing colour | Black |
| Contacts | Screw terminals |
| Contact material | Nickel |
| Locking pin | Plated |
| Cable outlet | Single screw thread, 180° |
| Cable diameter | 9.25mm – 10.60mm |
| Ingress protection | IP54 |
| Manufacturer part no. | 24N-7PPS-CV (non-inverted) |
| Origin | Made in the UK |
What is a 24N socket?
On 24V systems the lead colour tells you the circuit. The black N-Type lead to ISO 1185 — also called 24N — carries the main lighting functions: side lights, indicators, stop lights and fog. The white S-Type lead (ISO 3731, 24S) carries auxiliary circuits. Many tractor and trailer combinations run both.
If your trailer uses electronic braking you may need the 15-pin ISO 12098 connection instead — see our trailer sockets and plugs range.
