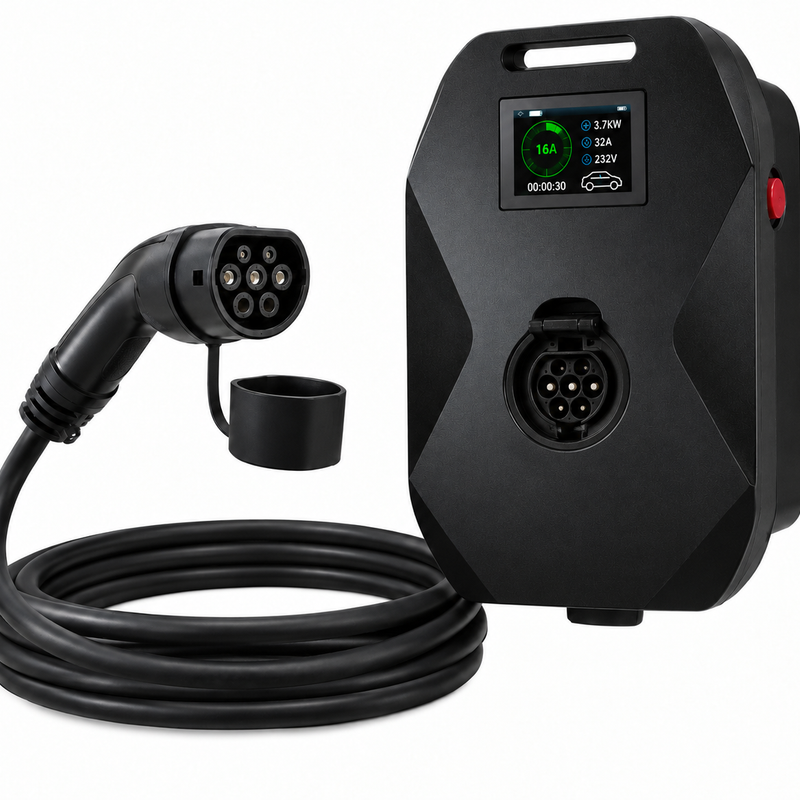

32A Single Phase 7.4kW Smart EV Wall Charger — Type 2, App & RFID
Overview
A single phase 32A (7.4kW) Type 2 wall-mounted EV charger with a built-in LED display, app connectivity and RFID access control. Built in a UL94V-0 flame-retardant ABS+PC housing, rated IP66 for outdoor installation, and supplied with a 5 metre EN50620 charging cable as standard.
Suitable for homes, workplaces and customer car parks. Custom labelling and own-brand units are made to order.
Key features
- 7.4kW single phase charging — 32A default, with 16A / 20A / 32A selectable output
- Smart connectivity — Bluetooth / WiFi + RFID, or WiFi / 4G + RFID + OCPP 1.6 (customised)
- LED display showing temperature, charging time and real-time current
- IP66 weatherproof, CE (EN 62752) certified by TUV, cable certified to EN50620, RoHS compliant
- Full protection suite — leakage, over-voltage, under-voltage, overload (with self-checking recovery), lightning and over-heat protection
- Flexible installation — CEE plug or hardwired
- Custom labelling and OEM branding — made to order
Full technical specification
| Charging connector | IEC 62196 (Type 2) |
| Charging plug | CEE plug or hardwired (EN50620 cable) |
| Rated current | 32A default — 16A / 20A / 32A selectable |
| Rated power | 7.4kW single phase (platform supports up to 22kW three phase) |
| Rated input voltage | 230V–415V AC |
| Rated output voltage | 230V–415V AC |
| Cable length | 5 metres (16.5 ft) — or customised |
| Control box size | 254.5 × 120 × 406.5 mm |
| Housing | ABS+PC, UL94V-0 fire rating |
| Ingress protection | IP66 |
| Cable insulation resistance | >1000 MΩ (DC 500V) |
| Contact resistance | 0.5 mΩ max |
| Wiring harness options | 5×2.5mm² + 1×0.5mm² / 3×6mm² + 1×0.5mm² / 5×6mm² + 1×0.5mm² |
| Smart / commercial version | Bluetooth/WiFi + RFID, or WiFi/4G + RFID + OCPP 1.6 (customised) |
| Certification | CE (EN 62752) by TUV, cable certified EN50620 by TUV, RoHS |
Installation must be carried out by a qualified electrician in accordance with BS 7671 and local wiring regulations.
Own a pub, shop or hotel? This brings people to you
A charge point isn't just for the driveway. For a venue with a car park, it's the reason a driver picks you over the place down the road — and it keeps them there while they spend.
Pubs & restaurants
EV drivers plan their stops around charging. Put a charger in your car park and you become the obvious choice for lunch or dinner — they eat while the car charges, which means a longer visit and a bigger bill. A 7.4kW unit adds roughly 25–30 miles of range per hour, so a meal is a genuinely useful top-up.
Shops & retail
Free or paid charging is a straightforward reason to choose your car park over the next one. Shoppers stay for the charge rather than rushing off, and with RFID access you decide who can use it — customers only, staff only, or open to all.
Hotels, B&Bs & holiday lets
EV charging is a filter on most booking sites now. A guest with an electric car will book the place that has one and skip the one that doesn't — and a car parked overnight is the perfect charging window. It's one of the cheapest ways to win bookings from the hotel next door.
Once your charge point is in, you can add EV charging to your Google Business Profile and list the site on charging maps such as Zap-Map. Google Maps lets drivers filter for places with EV charging, so your venue turns up in "EV charging near me" searches you'd never otherwise appear in — in front of people deciding where to stop, right now.
Thinking about one or several units for a site? We can supply with RFID access control for staff or customer-only charging, and OCPP 1.6 if you want to bill for charging.
Talk to us about your site →Features
7.4kW Charging
32A single phase as standard, with 16A / 20A / 32A selectable output so the unit can be matched to the supply available.
App & RFID Control
Bluetooth and WiFi control from your phone, with RFID card access. WiFi/4G with OCPP 1.6 available for commercial sites.
Protected & Certified
IP66 weatherproof with leakage, over-voltage, under-voltage, overload, lightning and over-heat protection. CE (EN 62752) by TUV.
Frequently Asked Questions
We have sample units available now, but this charger isn't sold through the basket — please contact us to order or call 07903 297370. We'll confirm pricing, availability and delivery for the quantity you need.
Yes. Custom-made and own-branded units are produced to order — your logo, labelling and packaging, custom cable lengths and tailored smart or commercial firmware. These are not stock items, so please enquire with your requirements and quantities and we'll come back with lead time and pricing.
At 32A single phase the unit delivers up to 7.4kW, which adds roughly 25–30 miles of range per hour on most EVs — so a typical 60kWh battery charges overnight. Output is selectable at 16A, 20A or 32A if the supply cannot take the full load.
Yes. A wall charger must be installed by a qualified electrician in accordance with BS 7671 and local wiring regulations. The unit can be supplied with a CEE plug or hardwired — tell us which you need when you enquire.
Yes. The housing is rated IP66 — protected against dust and powerful water jets — in a UL94V-0 flame-retardant ABS+PC enclosure, so it is suitable for outdoor wall mounting in UK weather.
The app connects over Bluetooth or WiFi and lets you start and stop charging, set the current, and see live power, voltage, current and session time. RFID cards can restrict who is able to charge. A WiFi/4G version with OCPP 1.6 is available for workplace and commercial sites.
